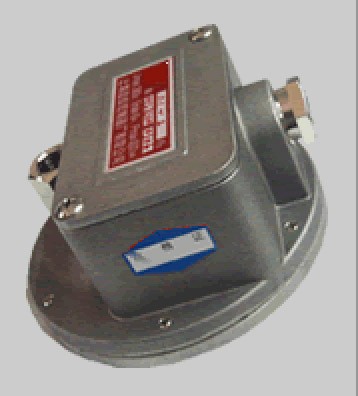

0822711 0822811 pressure controller
The controller adopts diaphragm type sensor, which can be used for gas and liquid media. The setting value of the controller is adjustable, and the adjustment range is 0.05-16 Mpa.
□ Major Technical features
For neutral gas and liquid media
Working viscosity: < 0.01m2/s
Repeatability error: ≤2%
Enclosure protection class: IP65
Ambient temperature: -10 ° C to 55 ° C
Medium temperature: 0 ~ 60℃ if the above temperature must have enough cooling guide pipe (generally above 3 meters).
Installation position: arbitrary
Vibration resistance: 20m/ S2
Contact capacity: AC250V6A resistance
Features: High pressure resistance and can be used in various types of media (neutral gas, liquid, oil).
