0845180 0845280 0845380 pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers 0845180 0845280 0845380 pressure control

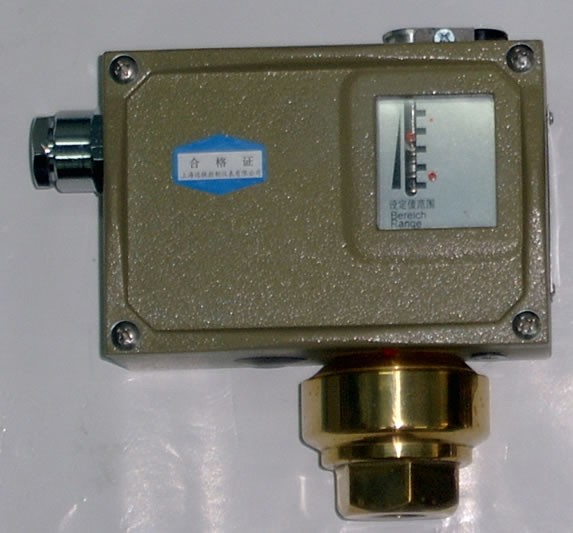

0845180 0845280 0845380 pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    0845180 0845280 0845380 pressure controller uses a diaphragm sensor, and some specifications of the sensor housing material. The material is stainless steel, which can be used for corrosive media and neutral gases such as air.

    Body and oil and other liquid media. Controller set value is adjustable, adjustment range

    0 ~ 1MPa.

    ◇ Main technical performance:

    Normal type

    Explosion-proof type

    Working viscosity

    <1×10-3m2/s

    Working viscosity

    <1×10-3m2/s

    Switching element

    Micro Switch

    Switching element

    Micro Switch

    Explosion-proof grade

    ——

    Explosion-proof grade

    ExedII CT5 Certificate number GYB081089X

    Enclosure rating

    IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

    IP54
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Ambient temperature

    -5℃~+40℃

    Ambient temperature

    -5℃~+40℃

    Medium temperature

    0℃~120℃

    Medium temperature

    0℃~95℃

    Installation location

    Pressure connection vertically down

    Installation location

    Pressure connection vertically down

    Anti-vibration performance

    20m/s2

    Anti-vibration performance

    Max:20m/s2

    Repeatability error

    ≤1.5%

    Repeatability error

    ≤1.5%

    Contact rating

    AC220V 6A(Resistive)

    Contact rating

    DC250V 0.25A(Resistive) 60Wmax
    AC250V 5A(Resistive) 1250VAmax
