D500 / 18D pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D500 / 18D pressure controller

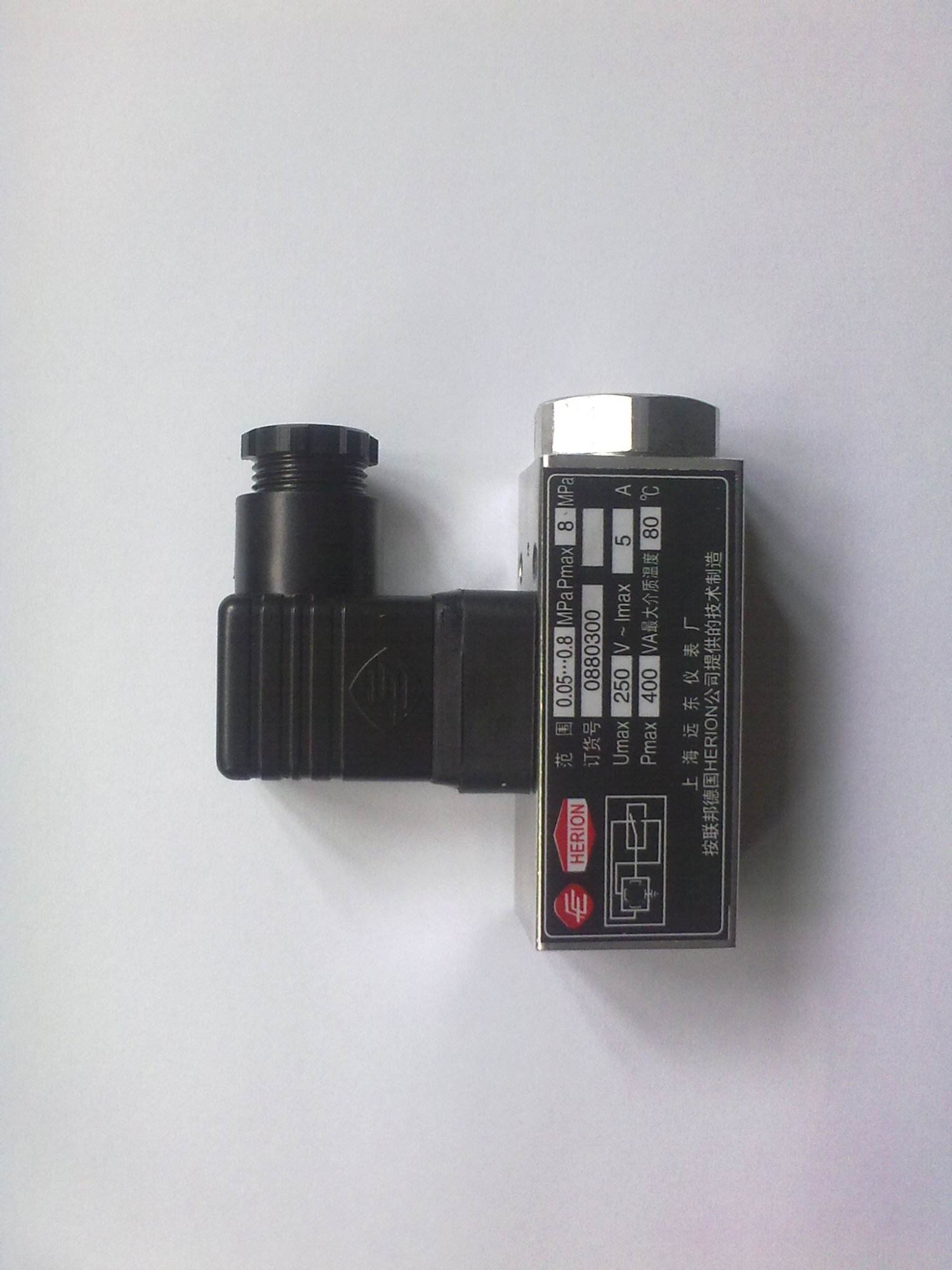

D500 / 18D pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    D500 / 18D pressure controller

    The controller uses a diaphragm sensor. Can be used for air, gas and other neutral gases and lubricating oils, light fuel oil liquid medium. The setting value of the controller is adjustable, and the adjustment range is -0.1 …… 1.6Mpa.

    Features:

    This controller is an ultra-compact design, which allows higher switching frequency and excellent vibration resistance.

    ◇ Main technical performance:



    Normal type

    Working viscosity

     <1×10-3m2/s

    Switching element

    Micro Switch

    Enclosure rating

     IP65 (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Ambient temperature

     -25℃~55℃

    Medium temperature

     -25℃~80℃

    Installation location

    Pressure connection vertically downwards (allows 15 ° tilt)

    Anti-vibration performance

     Max:150m/s2

    Repeatability error

     ≤2.5%

    Contact rating

     AC220V 3A(Resistive)
