D520M / 7DDP micro differential pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D520M / 7DDP micro differential pressure

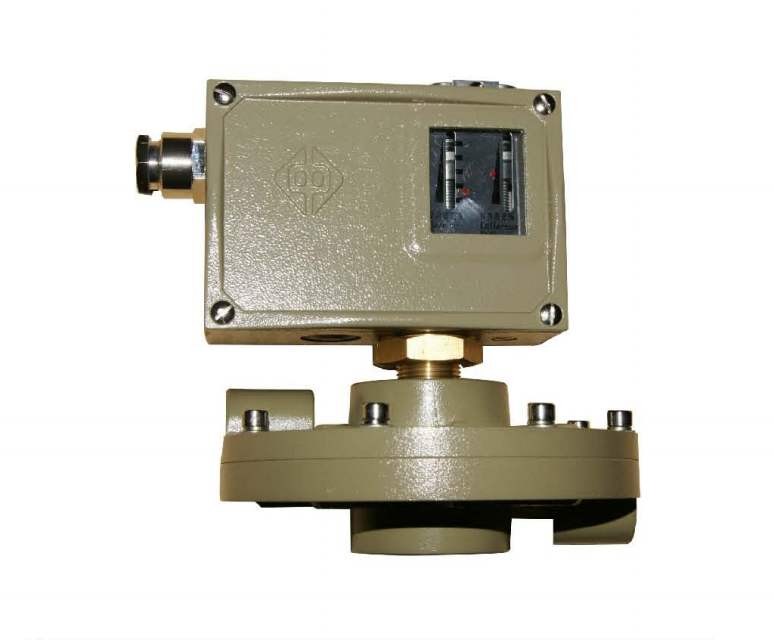

D520M / 7DDP micro differential pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    D520M / 7DDP micro differential pressure controller
    The controller uses a diaphragm sensor, which can be used for neutral oil, gas medium and water. The setting value of the controller is adjustable, the adjustment range is 0.2-25kPa, and the working pressure range is 0-0.16MPa.
    ◇ Main technical performance:
    Working viscosity: <1 × 10-3m2 / S
    Life: 105 cycles (AC220V 6A resistive)
    Rated load: Vmax = 380V AC Imax = 6A (resistive)
    Max Pmax = 600V A
    Enclosure protection level: 1P54
    Environmental temperature: -10 ~ + 55 ℃
    Medium temperature: stable working temperature 0 ~ 90 ℃
    Anti-vibration performance: 10m / s2.
    Repeatability error: ≤1.5%

    Inquiry Us





    Related Products

    0817407 0817507 pressure controller

    0817407 0817507 pressure controller

    0817400 0817500 pressure controller

    0817400 0817500 pressure controller

    0810108 0810208 0810308 0810408 pressure controller

    0810108 0810208 0810308 0810408 pressure controller

    0804100 0804200 0804300 0804400 Pressure controller

    0804100 0804200 0804300 0804400 Pressure controller

    D520/11DD 823200 823300 pressure controller

    D520/11DD 823200 823300 pressure controller

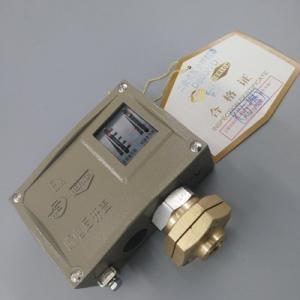

    D502/7D D502/7DK pressure controller
