D541 / 7T, D541 / 7TK temperature controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D541 / 7T, D541 / 7TK temperature contro
D541 / 7T, D541 / 7TK temperature controllerD541 / 7T, D541 / 7TK temperature controller

D541 / 7T, D541 / 7TK temperature controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

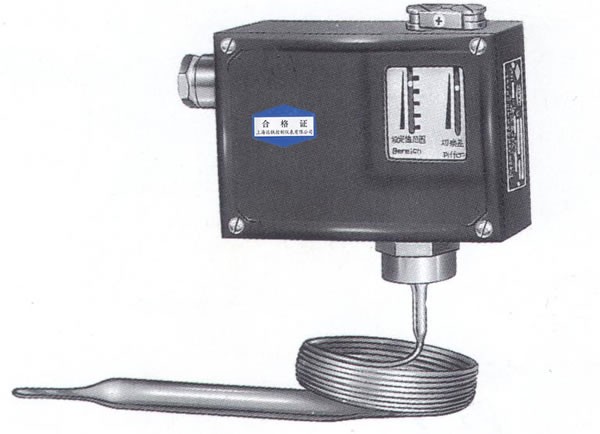

    D541 / 7T, D541 / 7TK temperature controller

    The controller uses a capillary temperature-packed sensor. It can be used for flowing neutral gas and liquid medium. If the medium is corrosive, you can choose a stainless steel thermostat protective sleeve to cover the copper thermostat when installing. The setting value of the controller is adjustable, and the adjustment range is -30 …… 280 ℃.

    Single pole double throw micro switch action process:

    Terminal 1-3: Turn on when the temperature rises to the upper switching value.

    Terminal 1-2: Open when the temperature rises to the upper switching value.

    ◇ Main technical performance:


    Normal type

    Explosion-proof type

    Switching element

    Micro switch

    Switching element

    Micro switch

    Explosion-proof rating

    ——

    Explosion-proof rating

    ExedII CT1-CT6 certificate number GYB081089X

    Enclosure rating

    IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

    IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

    -25℃~+60℃

    Ambient temperature

    -20℃~+40℃

    Capillary length

    1.5m (choose other length of capillary, the longest

    It can be 6m, it should be specified in the contract)

    Capillary length

    1.5m (choose other length of capillary, the longest

    It can be 6m, it should be specified in the contract)

    Installation location

    Perpendicular to the horizontal plane

    Installation location

    Perpendicular to the horizontal plane

    Anti-vibration performance

    D541/7T:40m/s2 ; D541/7TK:20m/s2

    Anti-vibration performance

    Max:20m/s2

    Warm package material

    Copper

    Warm package material

    Copper

    Repeatability error

    ≤1%

    Repeatability error

    ≤3%

    Contact rating

    AC220V 6A(Resistive)

    Contact rating

    DC250V 0.25A(Resistive) 60Wmax
    AC250V 5A(Resistive) 1250VAmax
