shanghai automation D502 / 7D, D502 / 7DK pressure controllers

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers shanghai automation D502 / 7D, D502 / 7D

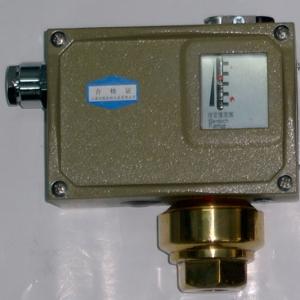

shanghai automation D502 / 7D, D502 / 7DK pressure controllers

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    Product introduction:

    D502 / 7D, D502 / 7DK pressure controllers use bellows type sensors. Can be used for air, gas, water vapor and other neutral gases and water, refrigerant, oil and other liquid media. Range -0.1 …… 2.5Mpa.

    Features:

    Can be used in vacuum.

    ◇ Main technical performance:



    Normal type



     Explosion-proof type

    Working viscosity

     <1×10-3m2/s

    Working viscosity

     <1×10-3m2/s

    Switching element

    Micro Switch

    Switching element

    Micro Switch

    Explosion-proof grade

     ——

    Explosion-proof grade

    ExedII CT5 certificate number GYB081089X

    Enclosure rating

    IP65

    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

    IP54

    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

     -40℃~+50℃

    Ambient temperature

     -40℃~+50℃

    Medium temperature

     0℃~120℃

    Medium temperature

     0℃~95℃

    Installation location

    Pressure connection vertically down

    Installation location

    Pressure connection vertically down

    Anti-vibration performance

      D502/7D:40m/s2 ; 502/7DK:20m/s2

    Anti-vibration performance

     Max:20m/s2

    Repeatability error

     ≤1%

    Repeatability error

     ≤1%

    Contact rating

     AC220V 6A(Resistive)

    Contact rating

     DC250V 0.25A(Resistive) 60Wmax
     AC250V 5A(Resistive) 1250VAmax
