0812208 0812308 0812408 0812508 pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers 0812208 0812308 0812408 0812508 pressure

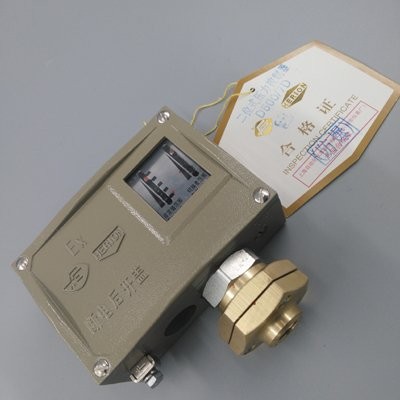

0812208 0812308 0812408 0812508 pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    0812208 0812308 0812408 0812508 pressure controller uses a diaphragm sensor. Can be used for air and other neutral gases and water, hydraulic oil, lubricating oil, light fuel oil and other liquid media. The setting value of the adjustable pressure controller is adjustable, and the adjustment range is 0 …… 2.5MP.

    Main technical performance of pressure controller:

    Normal type

    Explosion-proof type

    Working viscosity

    <1×10-3m2/s

    <1×10-3m2/s

    Switching element

    Micro Switch

    Micro Switch

    Explosion-proof grade

    ——

    ExdeⅡCT5

    Enclosure rating

    IP65 (in accordance with DIN40050, equivalent to IP65 in GB4208)

    IP54 (in accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

    -5~40℃

    -5~40℃

    Medium temperature

    0~90℃

    0~90℃

    Installation location

    Pressure connection vertically down

    Pressure connection vertically down

    Anti-vibration performance

    D500/7D:40m/s2
    D500/7DK:20M/S2

    Max:20m/s2

    Duplicate error

    ≤1.5%

    ≤1.5%

    Contact rating

    AC 220V 6A(Resistive)

    DC 250V 0.25A(Resistive) 60 Wmax
    AC 250V 5A(Resistive) 1250 VAmax

    Pressure controller D500 / 7DK switching difference is not adjustable (small switching difference, no explosion-proof type)

    Setting value adjustment range

    MPa(kPa)

    Switching difference is not greater than

    interface

    internal thread

    Weight kg

    Dimensions

    Drawing number

    Ordering Catalog Number

    Setting value range

    Lower limit
    MPa(kPa)

    Set value range upper limit
    MPa(kPa)

    (0……2.5)
    (0……6)
    (0……16)
    (0……25)

    (0.15)
    (0.18)
    (0.2)
    (0.25)

    (0.2)
    (0.45)
    (0.5)
    (0.6)

    G1/4"
    G1/4"
    G1/4"
    G1/4"

    1.0
    1.0
    1.0
    1.0

    01
    01
    01
    01

    0812207
    0812507
    0812707
    0812807

    0.005……0.06
    0.005……0.1
    0.005……0.16
    0.005……0.25

    0.002
    0.002
    0.0025
    0.0025

    0.004
    0.006
    0.0075
    0.01

    G1/4"
    G1/4"
    G1/4"
    G1/4"

    1.15
    1.15
    1.15
    1.15

    02
    02
    02
    02

    0814107
    0814207
    0814307
    0814407

    0.03……0.4
    0.03……0.6
    0.05……1

    0.015
    0.015
    0.018

    0.02
    0.02
    0.038

    G1/4"
    G1/4"
    G1/4"
    G1/4"

    0.85
    0.85
    0.85
    0.85

    03
    03
    03

    0814507
    0814607
    0814707

    0.1……1.6
    0.1……2.5

    0.02
    0.02

    0.08
    0.1

    G1/4"
    G1/4"

    0.85
    0.85

    03
    03

    0814807
    0814907
