0812600 0812700 0812800 Pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers 0812600 0812700 0812800 Pressure contro

0812600 0812700 0812800 Pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

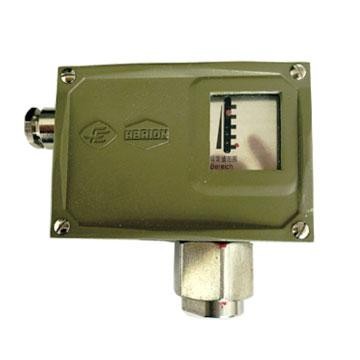

    0812600 0812700  0812800 Pressure controller is one of the main products located in Shanghai, D500 / 7D pressure controller uses a diaphragm sensor. Can be used for air and other neutral gases and water, hydraulic oil, lubricating oil, light fuel oil and other liquid media. The setting value of the controller is adjustable, and the adjustment range is 0-2.5Mpa.

    Pressure controller D500/7D contains the following ordering serial number: 0812200, 0812300, 0812400, 0812500, 0812600, 0812700, 0812800, 0802200, 0802300, 0802400, 0802500, 0802600, 0802700, 0802800, 0814100, 0814200, 0814300, 0814400, 0804100, 0804200, 0804300, 0804400, 0814500, 0814600, 0814700, 0804500, 0804600, 0804700, 0814800, 0814900, 0804800, 0804900, 0852280, 0852380, 0852480, 0852580, 0852680, 0852780, 0852880, 0842280, 0842380, 0842480, 0842580, 0842680, 0842780, 0842880, 0854180, 0854280, 0854380, 0854480, 0844180, 0844280, 0844380, 0844480, 0854580, 0854680, 0854780, 0844580, 0844680, 0844780, 0854880, 0854980, 0844880, 0844980.

    D500/7D Features:

    High control sensitivity.

    Single-pole double-throw micro switch action process:

    Terminal 1-3: Turn on when the pressure rises to the upper switching value.

    Terminal 1-2: Open when the pressure rises to the upper switching value.

    D500/7D Main technical performance

    Normal type

    Explosion-proof type

    Working viscosity

    <1×10-3m2/s

    Working viscosity

    <1×10-3m2/s

    Switching element

    Micro Switch

    Switching element

    Micro Switch

    Explosion-proof grade

    ——

    Explosion-proof grade

    ExedII CT6 Certificate number GYB081089X

    Enclosure rating

    IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

    IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

    -5℃~+40℃

    Ambient temperature

    -5℃~+40℃

    Medium temperature

    0℃~90℃

    Medium temperature

    0℃~90℃

    Installation position

    Pressure connection vertically down

    Installation position

    Pressure connection vertically down

    Anti-vibration performance

    D500/7D: 40m / s2; 500/ 7DK: 20m/s2

    Anti-vibration performance

    Max:20m/s2

    Repeatability error

    ≤1.5%

    Repeatability error

    ≤1.5%

    Contact rating

    AC220V 6A (resistive)

    Contact rating

    DC250V 0.25A (resistive) 60Wmax

    AC250V 5A (resistive) 1250VAmax
