0816508 0816608 0816708 0816808 pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers 0816508 0816608 0816708 0816808 pressure

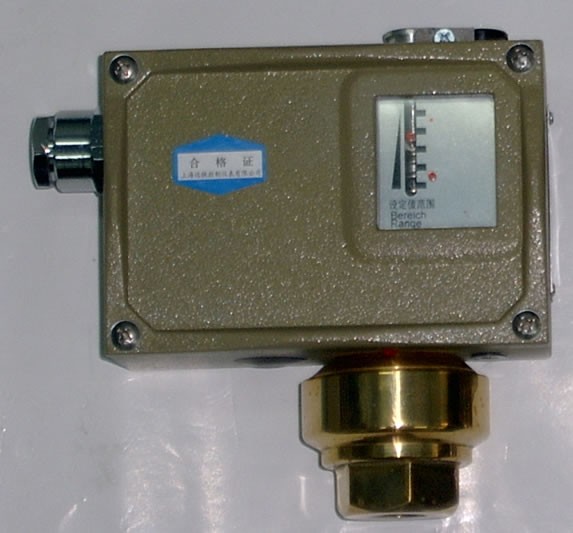

0816508 0816608 0816708 0816808 pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    0816508 0816608 0816708 0816808 pressure controller adopts non-leakage piston sensor, which can be used for compressed air containing oil mist and other oil mist gas and hydraulic oil, water-oil emulsion and neutral liquid medium with good lubrication performance. The setting value of the controller is adjustable, and its adjustment range is 0.3... 23 Mpa.

    Parameters and Specifications:

    Switching element: micro switch

    Enclosure protection grade: groove seal ring IP54; O-ring IP65 (according to DIN40050 and GB4208 IP54 and IP65)

    Ambient temperature: -5 ~ 40℃

    Medium temperature: 0 ~ 100℃

    Installation position: pressure interface vertical downward (allow Angle 15°)

    Vibration resistance: D505/7D: 40 m/ s2; D505/7dk: 20 m/ s2

    Repeatability error: ≤2.5%

    Contact capacity: AC220V6A (resistance)
