Description

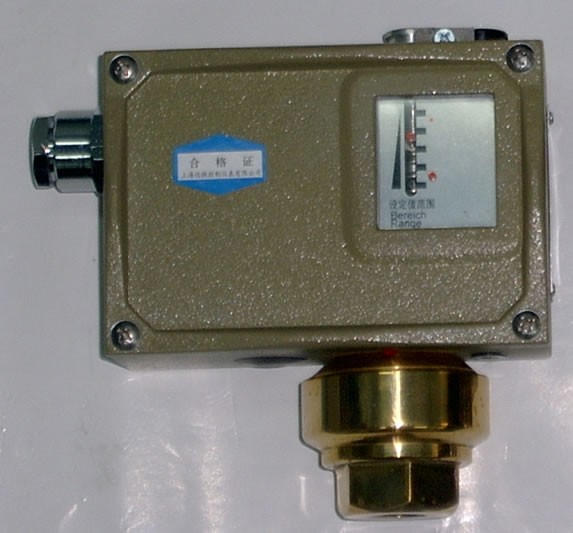

0853580 0853680 0853780 pressure controller uses a diaphragm sensor, and some specifications of the sensor housing material. The material is stainless steel, which can be used for corrosive media and neutral gases such as air.
Body and oil and other liquid media. Controller set value is adjustable, adjustment range
0 ～ 1MPa.
◇ Main technical performance:
|
|
Normal type |
|
Explosion-proof type |
|
Working viscosity |
<1×10-3m2/s |
Working viscosity |
<1×10-3m2/s |
|
Switching element |
Micro Switch |
Switching element |
Micro Switch |
|
Explosion-proof grade |
—— |
Explosion-proof grade |
ExedII CT5 Certificate number GYB081089X |
|
Enclosure rating |
IP65 |
Enclosure rating |
IP54 |
|
Ambient temperature |
-5℃～＋40℃ |
Ambient temperature |
-5℃～＋40℃ |
|
Medium temperature |
0℃～120℃ |
Medium temperature |
0℃～95℃ |
|
Installation location |
Pressure connection vertically down |
Installation location |
Pressure connection vertically down |
|
Anti-vibration performance |
20m/s2 |
Anti-vibration performance |
Max:20m/s2 |
|
Repeatability error |
≤1.5% |
Repeatability error |
≤1.5% |
|
Contact rating |
AC220V 6A(Resistive) |
Contact rating |
DC250V 0.25A(Resistive) 60Wmax |
