0818300 0818400 0818500 micro pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers 0818300 0818400 0818500 micro pressure

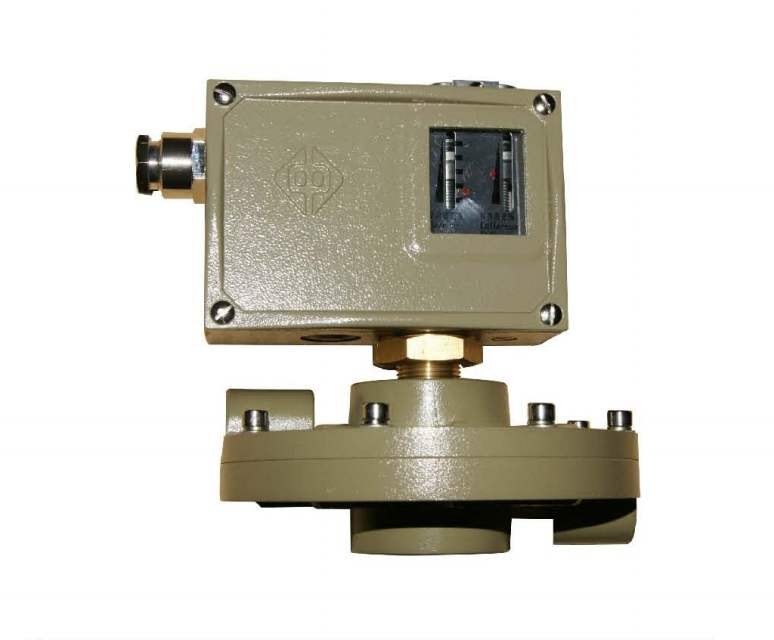

0818300 0818400 0818500 micro pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    0818300 0818400  0818500 micro pressure controller uses a diaphragm sensor, which can be used for neutral oil, gas medium and water. The setting value of the controller is adjustable, the adjustment range is 0.2-25kPa, and the working pressure range is 0-0.16MPa.
    ◇ Main technical performance:
    Working viscosity: <1 × 10-3m2 / S
    Life: 105 cycles (AC220V 6A resistive)
    Rated load: Vmax = 380V AC Imax = 6A (resistive)
    Max Pmax = 600V A
    Enclosure protection level: 1P54
    Environmental temperature: -10 ~ + 55 ℃
    Medium temperature: stable working temperature 0 ~ 90 ℃
    Anti-vibration performance: 10m / s2.
    Repeatability error: ≤1.5%
