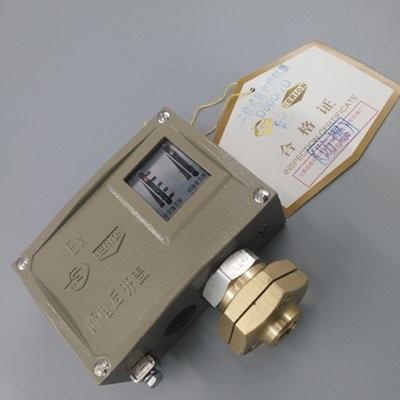

D500 / 7D pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D500 / 7D pressure controller

D500 / 7D pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    Product introduction:

    The D500 / 7D pressure controller uses a diaphragm sensor. Can be used for air and other neutral gases and water, hydraulic oil, lubricating oil, light fuel oil and other liquid media. The setting value of the controller is adjustable, and the adjustment range is 0-2.5Mpa.

    D500 / 7D pressure controller features:

    The control sensitivity is high.

    Single-pole double-throw micro switch action process:

    Terminal 1-3: When the pressure rises to the upper switching value, it will be connected. Terminal 1-3: Connected when the pressure rises to the upper switching value.

    Terminal 1-2: terminal when the pressure rises to the upper switching value.

    Main technical performance of D500 / 7D pressure controller:



    Normal type



    Explosion-proof type

    Working viscosity

     <1×10-3m2/s

    Working viscosity

     <1×10-3m2/s

    Switching element

    Micro Switch

    Switching element

    Micro Switch

    Explosion-proof grade

     ——

    Explosion-proof grade

    ExedII CT6 certificate number GYB081089X

    Enclosure rating

     IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

     IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

     -5℃~+40℃

    Ambient temperature

     -5℃~+40℃

    Medium temperature

     0℃~90℃

    Medium temperature

     0℃~90℃

    Installation location

    Pressure connection vertically down

    Installation location

    Pressure connection vertically down

    Anti-vibration performance

      D500/7D:40m/s2 ; 500/7DK:20m/s2

    Anti-vibration performance

     Max:20m/s2

    Repeatability error

     ≤1.5%

    Repeatability error

     ≤1.5%

    Contact rating

     AC220V 6A(Resistive)

    Contact rating

     DC250V 0.25A(Resistive) 60Wmax
     AC250V 5A(Resistive) 1250VAmax



    D500 / 7D switching difference is not adjustable

    Set value section range

    MPa(kPa)

    Switching difference is not greater than

    Pressure sensor material

    Dimension drawing number

    Ordering Catalog Number

    Lower limit of set value range

    MPa(kPa)

    Set value range upper limit

    MPa(kPa)

    Shell

    Diaphragm

    Normal type

    Explosion-proof type

    Normal type

    Explosion-proof type

    (0…2.5)

    (0…6)

    (0…16)

    (0…25)

    (0.3)

    (0.4)

    (0.4)

    (0.4)

    (0.4)

    (0.6)

    (0.8)

    (0.9)

    Galvanized steel

    Nitrile butadiene rubber

    01

    01

    01

    01

    04

    04

    04

    04

    0812200

    0812500

    0812700

    0812800

    0852280

    0852580

    0852780

    0852880

    0.005…0.06

    0.005…0.1

    0.005…0.16

    0.005…0.25

    0.003

    0.003

    0.003

    0.004

    0.006

    0.009

    0.012

    0.015

    Brass

    02

    02

    02

    02

    05

    05

    05

    05

    0814100

    0814200

    0814300

    0814400

    0854180

    0854280

    0854380

    0854480

    0.03…0.4

    0.03…0.6

    0.05…1

    0.02

    0.03

    0.03

    0.04

    0.05

    0.06

    03

    03

    03

    06

    06

    06

    0814500

    0814600

    0814700

    0854580

    0854680

    0854780

    0.1…1.6

    0.1…2.5

    0.04

    0.04

    0.12

    0.15

    03

    03

    06

    06

    0814800

    0814900

    0854880

    0854980



    D500 / 7D switching difference adjustable

    Setting value adjustment range

    MPa (kPa)

    Switching difference adjustment range

    Pressure Sensor

    material

    interface

    internal thread

    Ordering Catalog Number

    Lower limit of set value range

    MPa(kPa)

    Set value range upper limit

    MPa(kPa)

    Shell

    Diaphragm

    Normal type

    Explosion-proof type

    (0...2.5)

    (0...6)

    (0…16)

    (0…25)

    (0.8...2.5)

    (0.9...4)

    (1.1...12)

    (1.1...20)

    (1.1…2.5)

    (1.5…4)

    (2.3…12)

    (2.8…20)

    Galvanized steel

    Nitrile butadiene rubber

    G1/4″

    G1/4″

    G1/4″

    G1/4″

    0802200

    0802500

    0802700

    0802800

    0842280

    0842580

    0842780

    0842880

    0.005…0.06

    0.005…0.1

    0.005…0.16

    0.005…0.25

    0.009...0.05

    0.011...0.08

    0.013...0.12

    0.014...0.2

    0.016…0.05

    0.018…0.08

    0.025…0.12

    0.025…0.2

    Brass

    G1/4″

    G1/4″

    G1/4″

    G1/4″

    0814100

    0814200

    0814300

    0814400

    0844180 0844280 0844380 0844480

    0.03…0.4

    0.03…0.6

    0.05…1

    0.05...0.2

    0.06...0.4

    0.06...0.6

    0.05…0.2

    0.06…0.4

    0.06…0.6

    G1/4″

    G1/4″

    G1/4″

    0804500

    0804600

    0804700

    0844580

    0844680

    0844780

    0.1…1.6

    0.1…2.5

    0.12...1.2

    0.12...2

    0.12…1.2

    0.12…2

    G1/4″

    G1/4″

    0804800

    0804900

    0844880

    0844980






    Inquiry Us





    Related Products

    0804500 0804600 0804700 Pressure controller

    0804500 0804600 0804700 Pressure controller

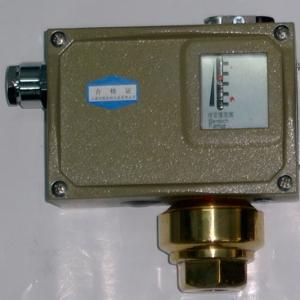

    0847280 0847380 pressure controller
