D506 / 7DD explosion-proof differential pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D506 / 7DD explosion-proof differential

D506 / 7DD explosion-proof differential pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    D506 / 7DD explosion-proof differential pressure controller

    The controller uses a sensor in the form of a combination of a piston and a diaphragm. Can be used for neutral gas, liquid and other fluid media. It has high pressure resistance and no leakage. The setting value of the controller is adjustable.

    Features:

    High pressure resistance, no leakage, good vibration resistance and high control accuracy.

    ◇ Main technical performance:



    Normal type



     Explosion type

    Working viscosity

     <1×10-3m2/s

    Working viscosity

     <1×10-3m2/s

     Switch element

     Micro Switch

     Switch element

     Micro Switch

     Explosion level

     ——

     Explosion level

     ExedII CT5 certificate code  GYB081089X

     Enclosure rating

     IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

     Enclosure rating

     IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

     -5℃~+40℃

    Ambient temperature

     -5℃~+40℃

    Media temperature

     0℃~120℃

    Media temperature

     0℃~120℃

     Mounting position

     Pressure connection vertically down

     Mounting position

     Pressure connection vertically down

     Anti-vibration performance

     40m/s2

    performance

     20m/s2

     Repeatability error

     ≤1.5%

    Repeatability error

     ≤1.5%

     Contact rating

     AC220V 6A(Resistive)

     Contact rating

     DC250V 0.25A(Resistive) 60Wmax
     AC250V 5A(Resistive) 1250VAmax









    Inquiry Us





    Related Products

    0812200 0812300  0812400 0812500 Pressure controller

    0812200 0812300 0812400 0812500 Pressure controller

     D501/7D D501/7DK pressure controller

    D501/7D D501/7DK pressure controller

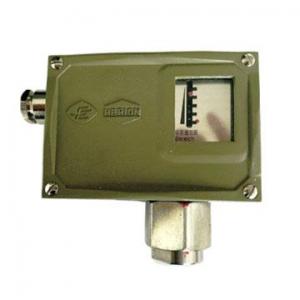

    0804500 0804600 0804700 Pressure controller
