D520 / 7DD, D520 / 7DDK differential pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D520 / 7DD, D520 / 7DDK differential pre

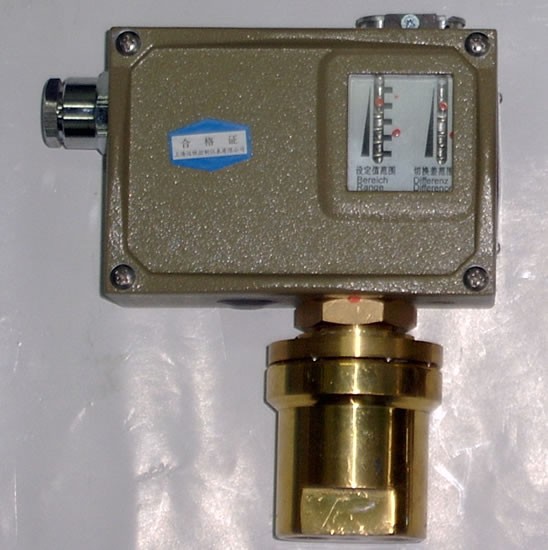

D520 / 7DD, D520 / 7DDK differential pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    D520 / 7DD, D520 / 7DDK differential pressure controller

    The controller uses a bellows-type sensor. Can be used for air, gas, water vapor and other neutral gases and water, oil and refrigerants and other liquid media. The setting value of the controller is adjustable, the adjustment range is 0.02 …… 1.6Mpa, the working pressure range is 0.05 …… 2.5MPa.

    ◇ Main technical performance:



    Normal type



    Explosion-proof type

     Working viscosity

     <1×10-3m2/s

    Working viscosity

     <1×10-3m2/s

    Switching element

     Micro switch

    Switching element

     Micro switch

    Explosion-proof level

     ——

    Explosion-proof level

     ExedII CT5 certificate code GYB081089X

    Enclosure rating

     IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

     IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

     Ambient temperature

     -30℃~+50℃

     Ambient temperature

     -20℃~+40℃

     Medium temperature

     0℃~120℃

     Medium temperature

     0℃~95℃

     Installation location

     Pressure connection vertically down

    Installation location

    Pressure connection vertically down

    Anti-vibration performance

      D520/7DD:40m/s2 ; 520/7DDK:20m/s2

    Anti-vibration performance

     Max:20m/s2

    Repeatability error

     ≤1%

    Repeatability error

     ≤1%

    Contact rating

     AC220V 6A(Resistive)

    Contact rating

     DC250V 0.25A(Resistive) 60Wmax
     AC250V 5A(Resistive) 1250VAmax
