Description

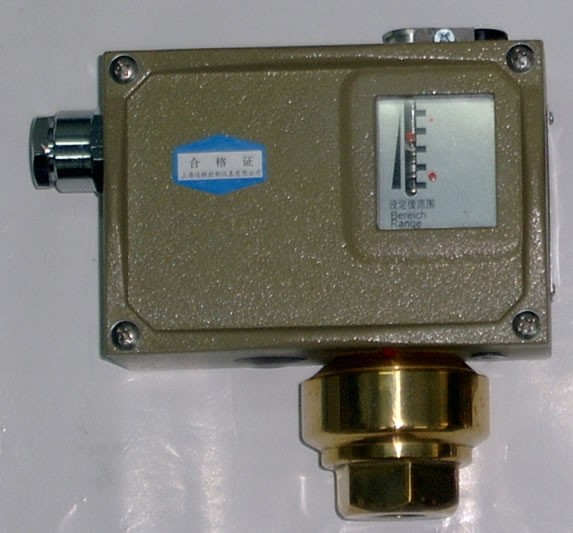

D504/7d, D504/7DK pressure controller adopts piston type sensor with oil drain port. Can be used in neutral hydraulic oil and other media, the controller set value is adjustable, adjustment range 0.3... 40 Mpa.
Parameters and Specifications:
Switching element: micro switch
Shell protection grade: IP65(according to DIN40050, and GB4208 in IP65)
Ambient temperature: -5 ~ 50℃
Medium temperature: 0 ~ 100℃
Installation position: pressure interface vertical downward (allow Angle 15°)
Vibration resistance: D504/7D: 40m/ S2; Dk D504/7:20 m/s2
Repeatability error: ≤1.5%
Contact capacity: AC220V6A (resistance)
