D520/7DD, D520/7DDK differential pressure controller

Home Products Shanghai Automation Instrumentation No. 4 Factory pressure controllers D520/7DD, D520/7DDK differential pressur

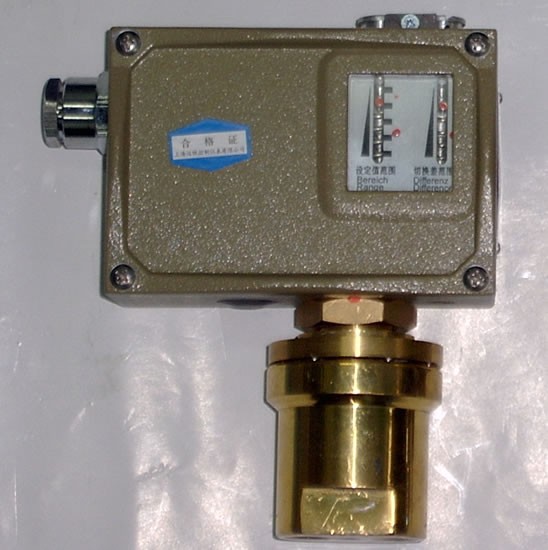

D520/7DD, D520/7DDK differential pressure controller

  • Category:pressure controllers
  • Inquiry Send Email

    Description

    D520/7DD, D520/7DDK differential pressure controller uses a bellows-type sensor. Can be used for air, gas, water vapor and other neutral gases and water, oil and refrigerants and other liquid media. The setting value of the controller is adjustable, the adjustment range is 0.02 …… 1.6Mpa, the working pressure range is 0.05 …… 2.5MPa.

    ◇ Main technical performance:

    Normal type

    Explosion-proof type

    Working viscosity

    <1×10-3m2/s

    Working viscosity

    <1×10-3m2/s

    Switching element

    Micro switch

    Switching element

    Micro switch

    Explosion-proof level

    ——

    Explosion-proof level

    ExedII CT5 certificate code GYB081089X

    Enclosure rating

    IP65
    (In accordance with DIN40050, equivalent to IP65 in GB4208)

    Enclosure rating

    IP54
    (In accordance with DIN40050, equivalent to IP54 in GB4208)

    Ambient temperature

    -30℃~+50℃

    Ambient temperature

    -20℃~+40℃

    Medium temperature

    0℃~120℃

    Medium temperature

    0℃~95℃

    Installation location

    Pressure connection vertically down

    Installation location

    Pressure connection vertically down

    Anti-vibration performance

    D520/7DD:40m/s2 ; 520/7DDK:20m/s2

    Anti-vibration performance

    Max:20m/s2

    Repeatability error

    ≤1%

    Repeatability error

    ≤1%

    Contact rating

    AC220V 6A(Resistive)

    Contact rating

    DC250V 0.25A(Resistive) 60Wmax
    AC250V 5A(Resistive) 1250VAmax
